CF fixed blank flanges in 304L stainless steel

£8.54 GBP

Sale Out of stock - more on the way...

Price includes VAT. Shipping calculated at checkout.

1 in stock

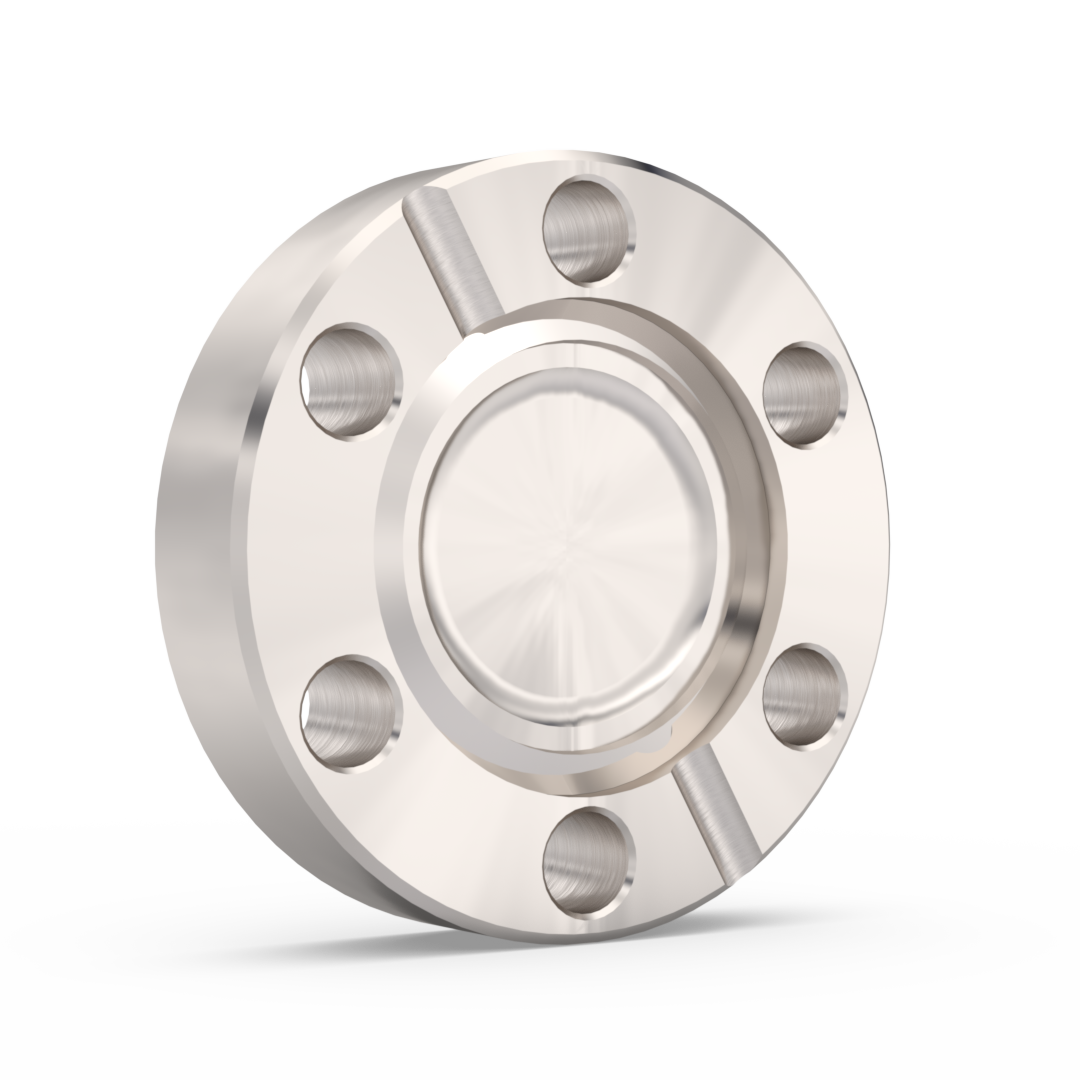

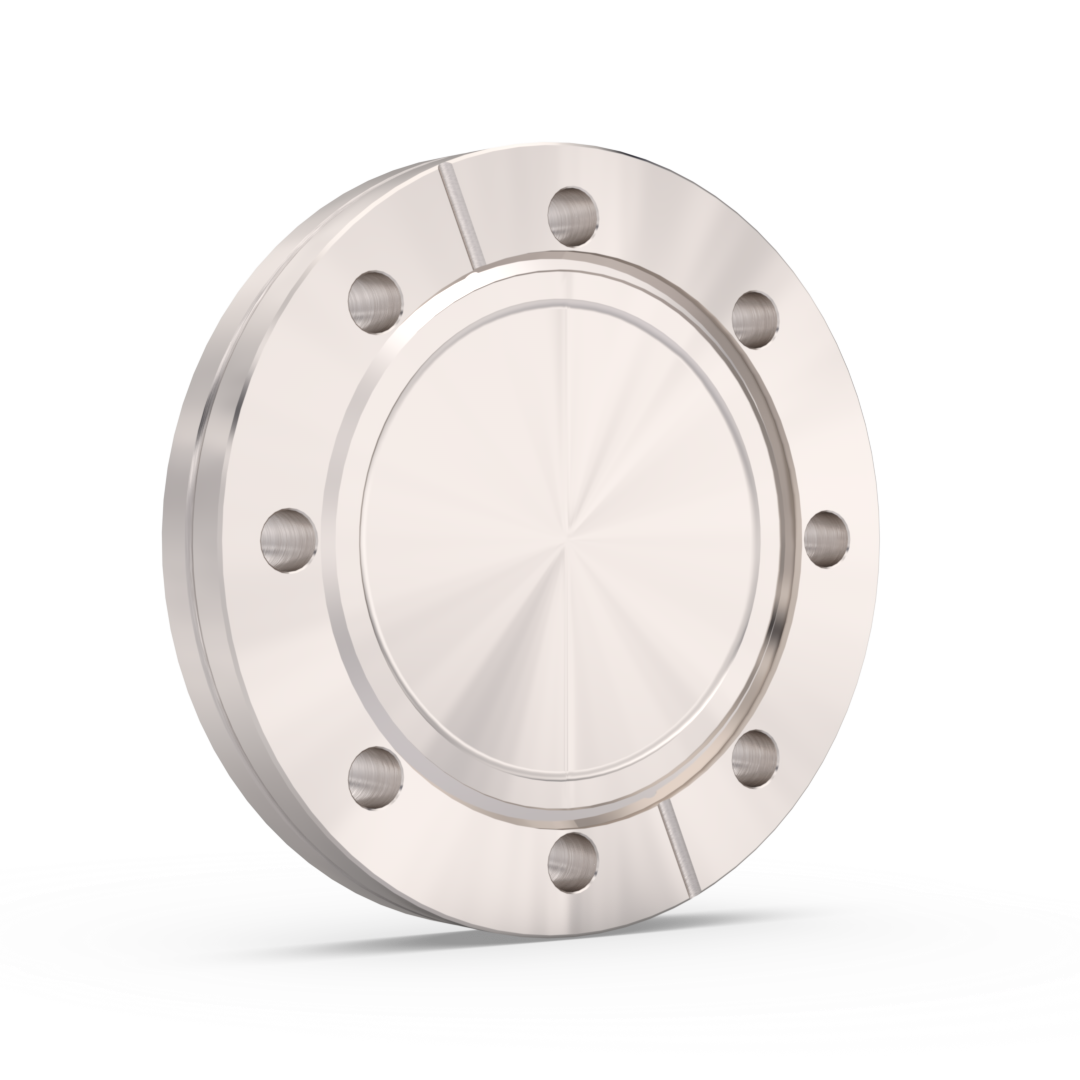

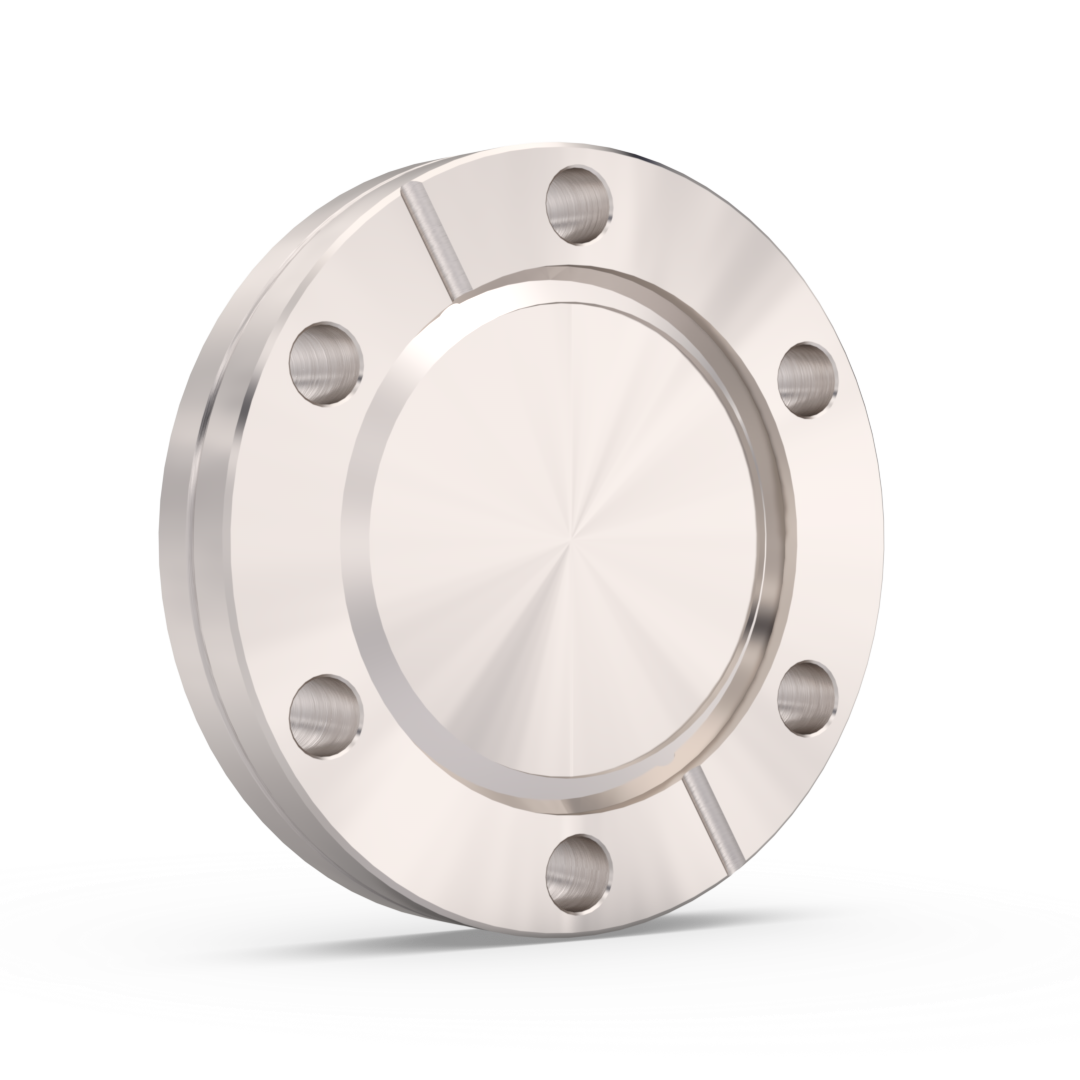

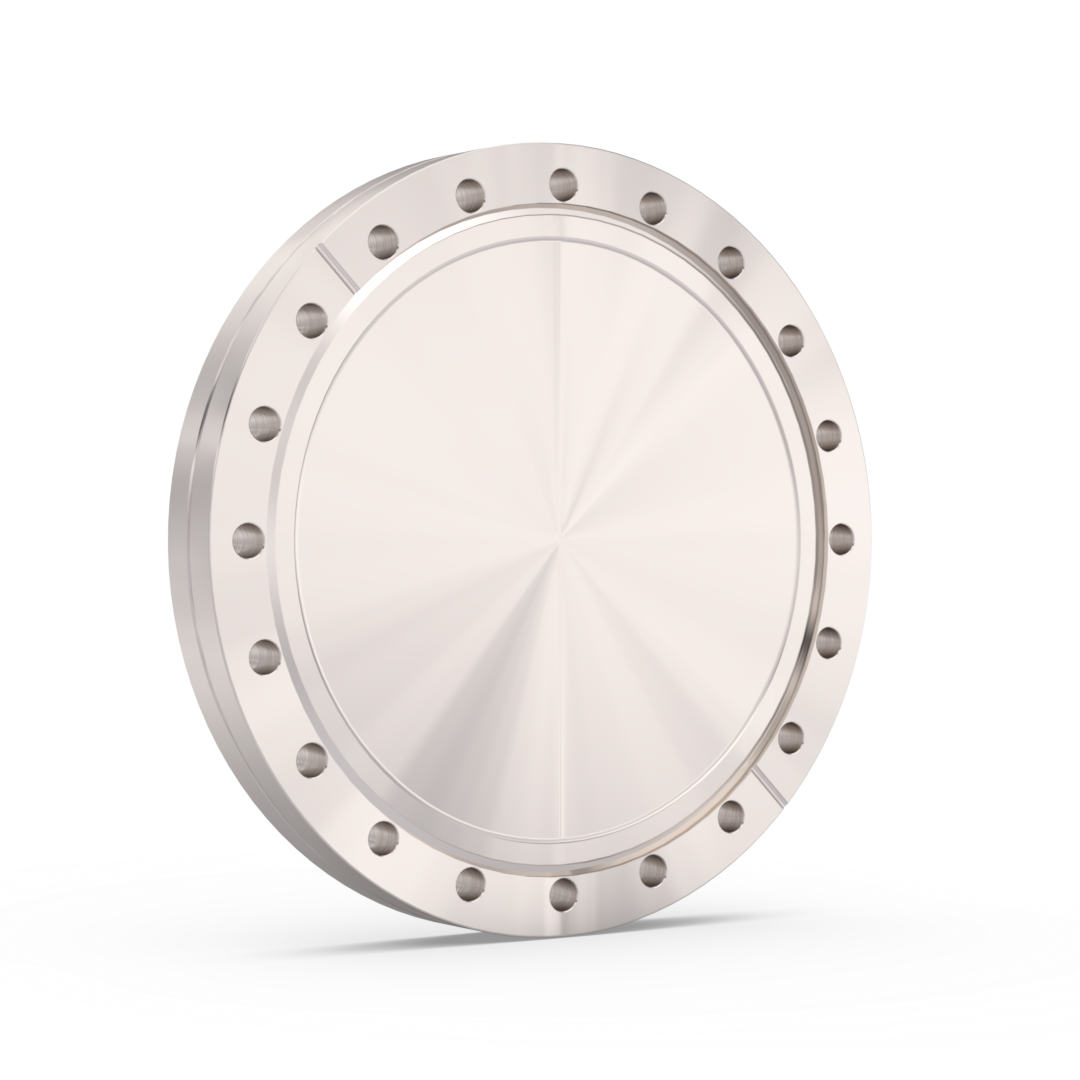

Size CF16 (NW16) 34mm diameter; 27mm PCD; 21mm gasket recess; 4.3mm bolt hole (x6) CF35 (NW35) 70mm diameter; 58mm PCD; 48mm gasket recess; 6.7mm bolt hole (x6) CF63 (NW63) 114mm diameter; 92mm PCD; 82mm gasket recess; 8.3mm bolt hole (x8) CF100 (NW100) 152mm diameter; 130mm PCD; 120mm gasket recess; 8.3mm bolt hole (x16) CF150 (NW150) 203mm diameter; 181mm PCD; 171mm gasket recess; 8.3mm bolt hole (x20)

CF fixed blank flanges in 304L stainless steel.
